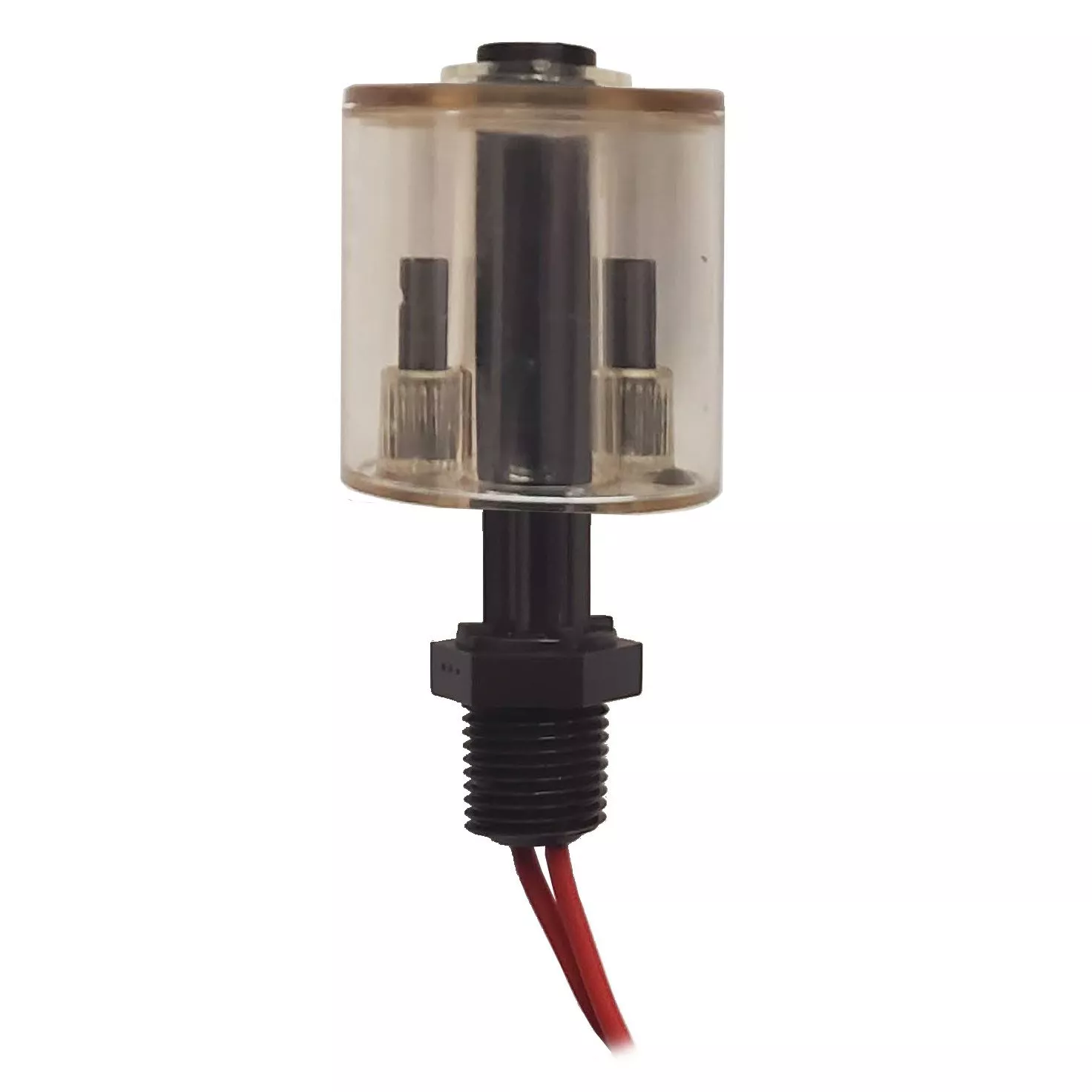

XTreme Power Level Switch (TE205314)

This is a replacement level switch for the XTreme Power XPH-5800t, XPH-9600 and XPH-9650 machines. This float is needed for the tank heater on the XPH-5800t machine, and needed for the pump to function on the XPH-9600 and XPH-9650. You can purchase the entire float assembly or the individual parts.

• The entire level switch assembly is part # TE205314.
• The float portion is part # TE205315.
• The c-clip that holds the float on the stem is part # TE205316.
• The stem with wires is part # TE205317

The float portion can be installed with the magnets on the top or the bottom. You will need to have the magnets on the bottom for these machines. You may need to flip the float over if it's set up backwards when you get receive it.
